Neural Networks

Neural Networks (NN) are one of the most popular Algorithms in Machine Learning (ML). They are inspired by the structure and function of the human brain, consisting of interconnected nodes (neurons) that process and transmit information.

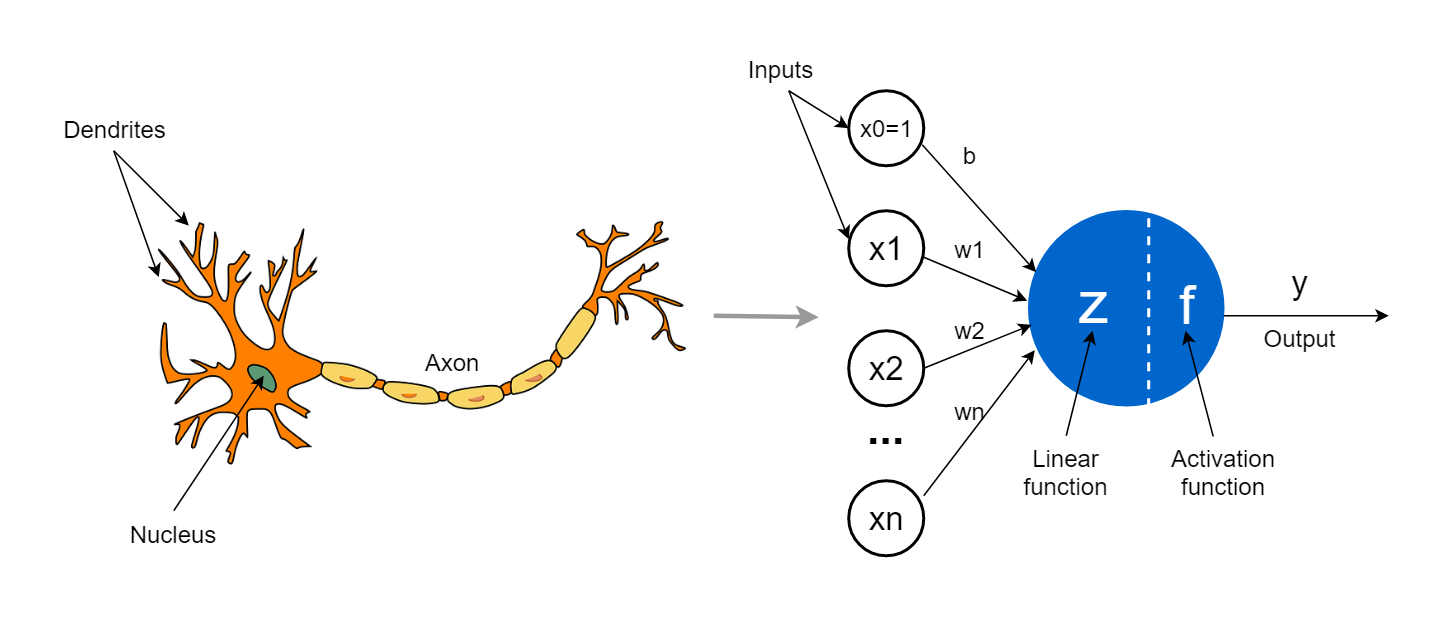

Analogy Between Real Neural Network and ML Nerual Network

Role of NN in ML​

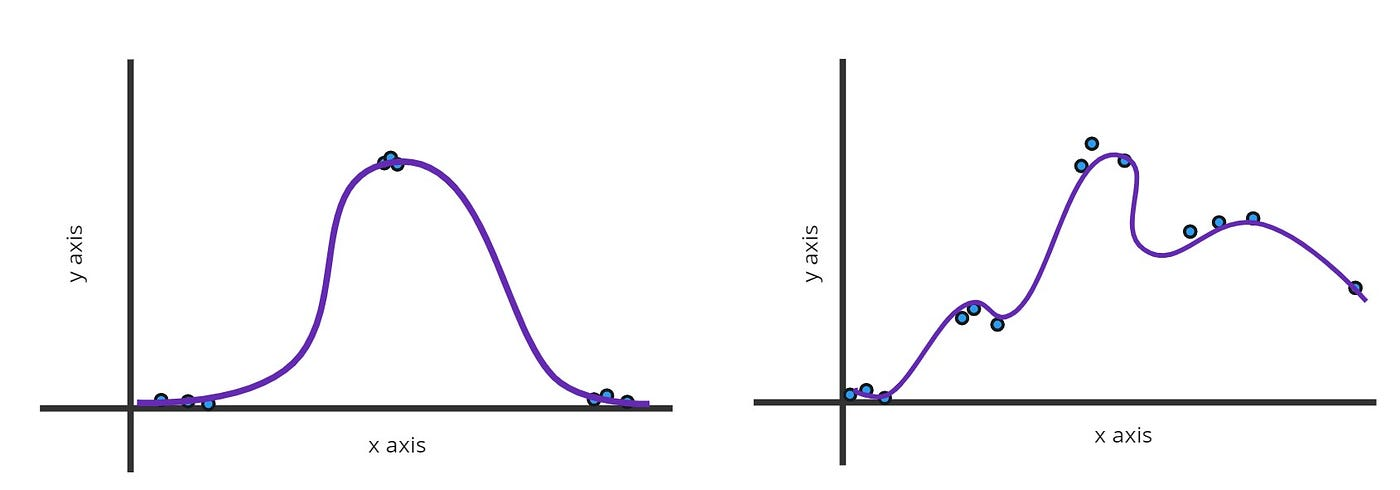

Based on the data provided, NN can learn to recognize patterns and relationships within the data. They do that by Fitting a Squiggly Line through the data points, to represent the output variable the best way possible based on the input variables. This process is called Training the NN.

Fitting Squigle through the points

The core unity of a NN is the Neuron (Perceptron). A Full NN consists of multiple layers of neurons:

  • Input Layer: Receives the input data.
  • Hidden Layers: Perform computations and extract features from the input data.
  • Output Layer: Produces the final output or prediction.

Perceptron Structure​

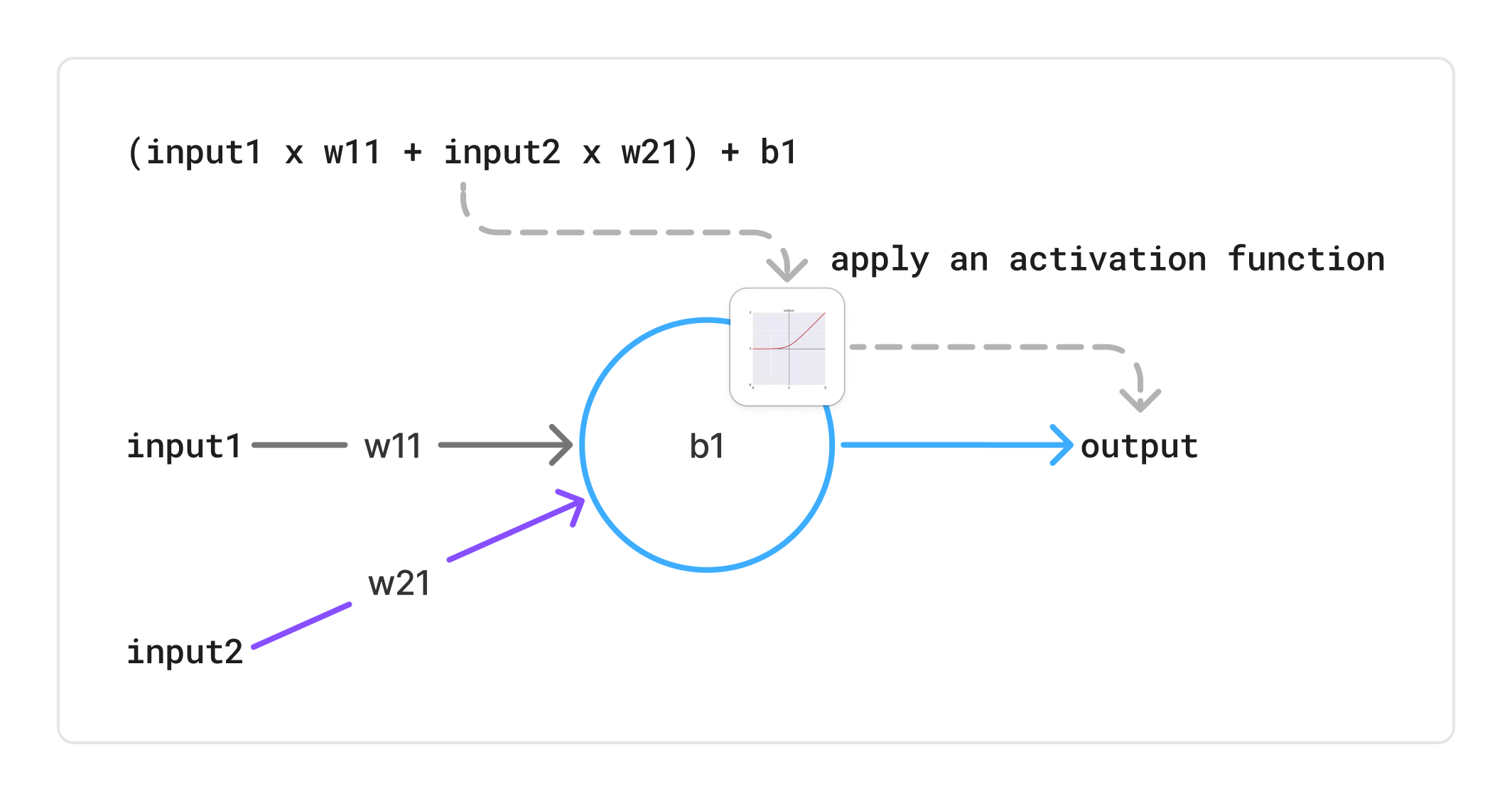

The Perceptron has been invented back in the 1950s by Frank Rosenblatt. It consists of multiple inputs, each associated with a weight and a bias term. The perceptron computes a weighted sum of the inputs, adds the bias, and applies an activation function for Nonlinearity.

alt text

The perceptron has to learn its weights and bias in order to make accurate predictions (output) based on the input data and the desired output. This learning process is called Training the Perceptron.

Training Steps​

The training process of a neural network involves several key steps:

  1. Forward Propagation: The input data is passed through the network layer by layer, with each neuron applying its weights, bias, and activation function to compute the output. (See Forward Pass for more details.)
  2. Loss Calculation: The network's output is compared to the actual target values using a Loss Function to measure the error or difference between the predicted and actual values. (See Cost Functions for more details.)
  3. Backward Propagation: The error is propagated backward through the network to compute the gradients of the loss with respect to the weights and biases using the Chain Rule of calculus. (See Backpropagation for more details.)
  4. Weight Update: The weights and biases are updated using an optimization algorithm (e.g., Gradient Descent) to minimize the loss. This involves adjusting the weights in the direction that reduces the error. (See Backpropagation for more details.)
  5. Iteration: Steps 1-4 are repeated for multiple epochs (iterations) until the network converges to a satisfactory level of accuracy.
